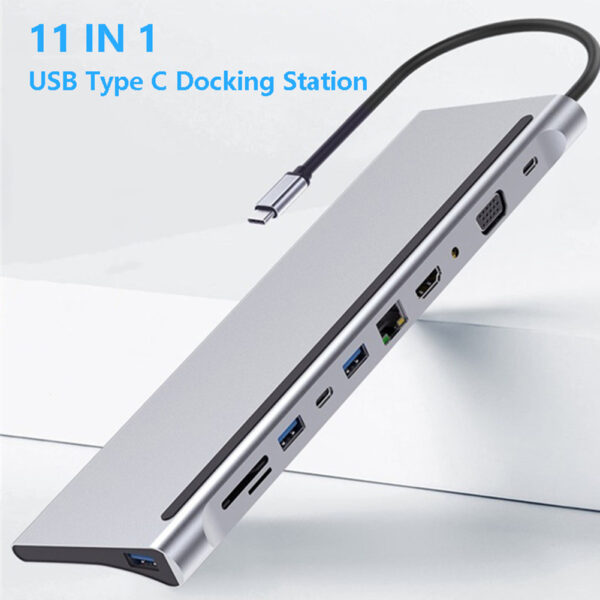

USB C Docking Station Specifications:
Color: Silver
Material: Aluminum alloy
Size: 250mm*80mm*(16mm, 8mm)/9.84*3.15*(0.62, 0.31)inch
Length of Cable: 290mm/11.42inch

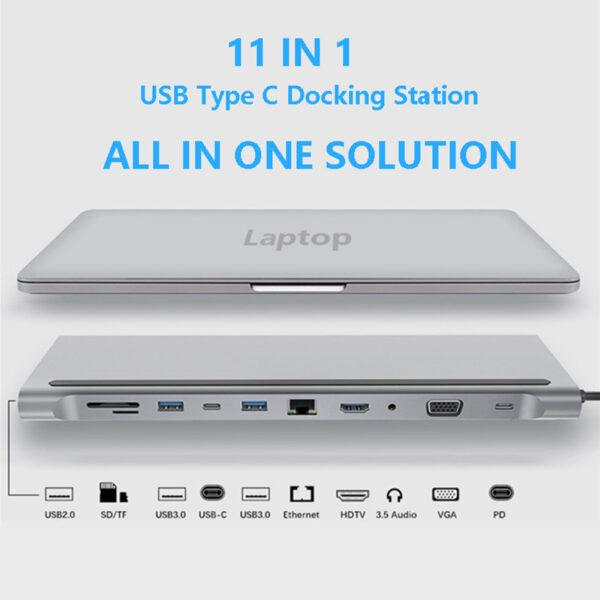

Interfaces: USB Type C male port
Port-1: USB 2.0, Type A Female Port
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, Not 1000Mbps
Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-9: DC 3.5mm Audio Jack Port
Port-10: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.
Port-11: USB Type C PD Charging Port
Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.
Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card
Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless
Function-4: Support USB C Power Delivery, Keep laptop the best performance
Function-5: Extend a Larger Screen via HDMI or VGA
Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840×2160 30Hz
Function-7: HDMI and VGA output simultaneously
Function-8: HDMI and VGA support Extended Mode and Mirror Mode
Compatible:
* For MacBook 2018/2017/2016, MackBook Pro 2018/2017, iPad Pro 2018/2020
* For Huawei Matebook X, Huawei Mate20/Mate 20 Pro
* For Lenovo XiaoXin Pro 13” 2019 2020
* For Lenovo ThinkPad T490, T490s, T14 (14″)Intel, T480, T480s, T580, T590, T15 (15″)Intel
* For Lenovo ThinkPad P43s (14″), P14s (14″), P15s (15″)
* For Lenovo ThinkPad X280, X390, X13(13″)Intel, X13 Yoga(13″), X380 Yoga(13″)
* For Lenovo ThinkPad X1 Yoga Gen 3 (14″), X1 YOGA Gen 4 (14″), X1 Yoga Gen 5 (14″)
* For Lenovo ThinkPad X1 Carbon Gen 6 (14″), X1 Carbon Gen 7 (14″), X1 Carbon Gen 8 (14″)
* For Lenovo ThinkPad L380, L480, L580, L490, L590, L13 Yoga(13″)
* For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300
* For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1
* For Dell XPS 15 9500
* For Dell XPS 15 9575 2-in-1
* For Dell Latitude 7400 2-in-1 14″
* For Dell Latitude 7200 2-in-1 12″, Latitude 7210 2-in-1 12″
* For Huawei MateBook 13, XPro, E
* For Huawei HONOR MagicBook Pro
* For XiaoMi Air 12.5″, 13.3″, Pro 15.6″
* For ChromeBook Pixels
* For Teclast F6 Plus
* updating …
Note:
- If your laptop isn’t in the compatilbe list, You MUST make sure the host USB-C port on your laptop is full-featured USB-C.
Full-Featured USB-C: USB3.0/USB 3.1 + DP(Display Port) + PD(Power Delivery).
If you are not sure whether this docking station is compatible with your laptop,
please tell me the model of your laptop, I am pleasure to check the compatible.
- You MUST make sure the host USB-C port is on the left side of your laptop.
Because the length of cable is 290mm/11.42inch, or you don’t want to place this docking station under your laptop.
Or you can take a look the other product: 11IN1(https://www.aliexpress.com/item/4000977727302.html)
- Support HDMI and VGA output simultaneously work with Mirror Mode or Extended Mode.
Extended Mode work like this:
The laptop’s screen and this docking station screens(VGA+HDMI) show the different content,
but this USB-C docking station’s VGA and HDMI show the same content.
If you want to extend 2 monitors to show different contents, Please take a look at the other product: 12IN1(https://www.aliexpress.com/item/4001324669469.html)
- 4Kx2K@30Hz work when HDMI is connecting and VGA is disconnecting.
